Recommended replacement interval for the part category Brake caliper : 100000 km

Important!

This replacement procedure can be used for:
VAUXHALL Vivaro Platform / Chassis (X82) 1.6 CDTi, VAUXHALL Vivaro Platform / Chassis (X82) 1.6 CDTI, VAUXHALL Vivaro Platform / Chassis (X82) 1.6 CDTi, VAUXHALL Vivaro Platform / Chassis (X82) 1.6 CDTi, VAUXHALL Vivaro Platform / Chassis (X82) 1.6 CDTi … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

Alternative products

Brake caliper

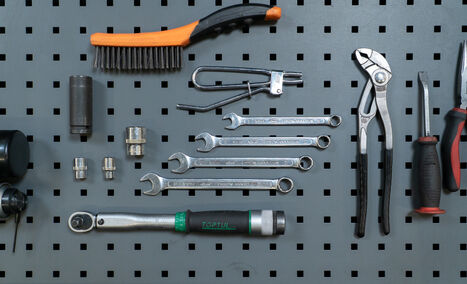

Replacement: brake caliper – VAUXHALL VIVARO Platform/Chassis. Tools you'll need:

                      Wire brush

                      WD-40 spray

                      All-purpose cleaning spray

                      Ceramic grease

                      Torque wrench

                      11 mm combination spanner

                      13 mm combination spanner

                      14 mm combination spanner

                      15 mm combination spanner

                      13 mm socket

                      21 mm socket

                      14 mm flare nut socket

                      19 mm wheel impact socket

                      Ratchet wrench or power tool for removal/installation of threaded fasteners

                      Tommy bar

                      Adjustable pliers

                      Mounting lever

                      Long nose pliers

                      Brake hose clamp

                      Brake cleaner

                      Brake bleeder kit

                      Fluid drain pan

                      Car lift or jack with jack stands, and wheel chocks

Buy tools

Replacement: brake caliper – VAUXHALL VIVARO Platform/Chassis. AUTODOC recommends:

The procedure for replacing the right and left brake calipers and brackets on the same axle is identical.
All the work should be carried out with the ignition switched off.

Replacement: brake caliper – VAUXHALL VIVARO Platform/Chassis. Recommended sequence of steps:

Step 1

Open the bonnet.

Step 2

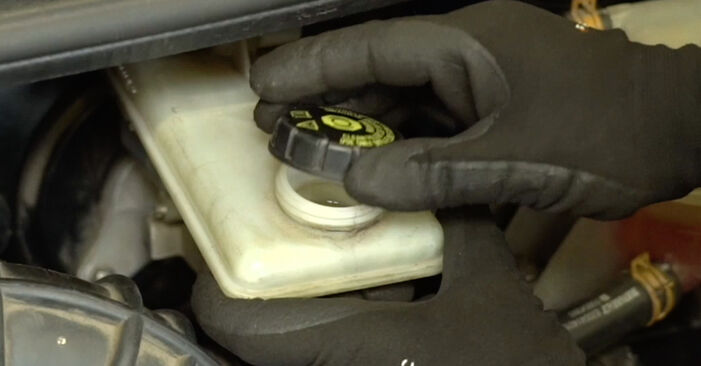

Loosen the brake fluid reservoir cap.
Step 3

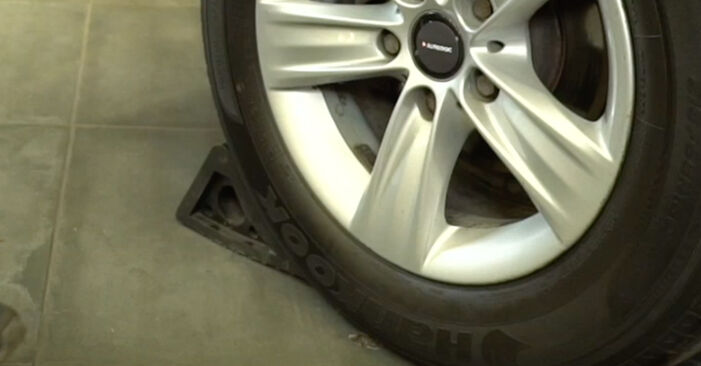

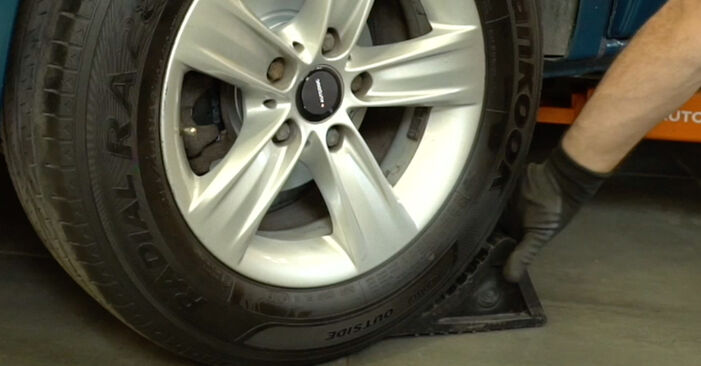

Secure the wheels with chocks.
Step 4

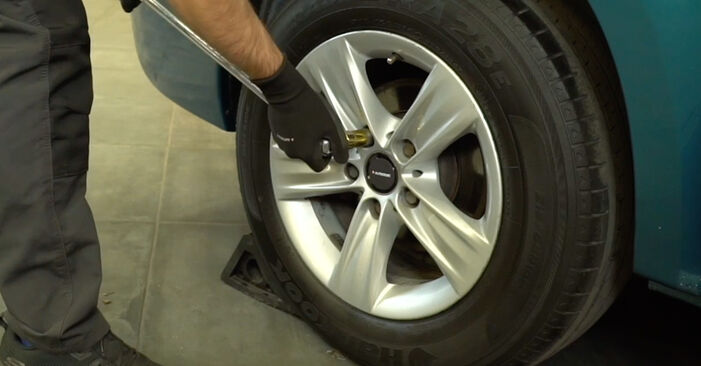

Loosen the wheel fasteners. Use a 19 mm wheel impact socket. Use a tommy bar.
Step 5

Raise the vehicle.

Replacement: brake caliper – VAUXHALL VIVARO Platform/Chassis. Tip:
If you are using a jack, make sure the car is parked on a hard, flat surface.Make sure to additionally secure the car with jack stands.
Step 6

Unscrew the wheel fasteners.

Caution!
To avoid injury, hold up the wheel when unscrewing the fasteners.
Step 7

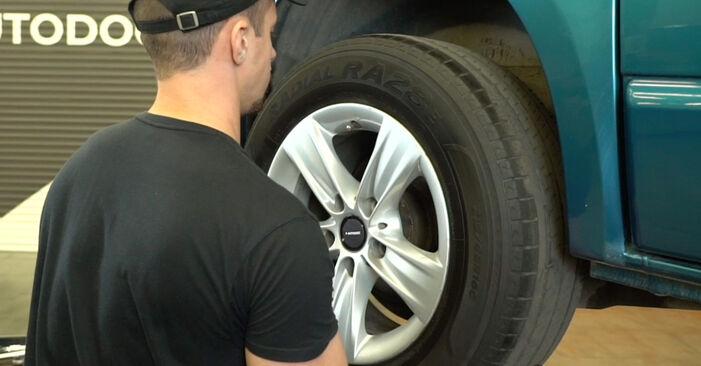

Remove the wheel.
Step 8

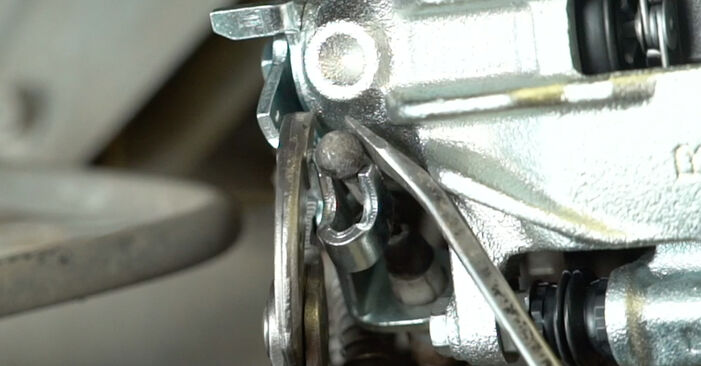

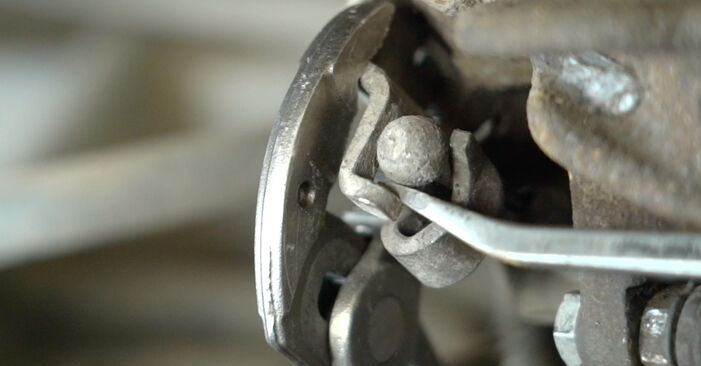

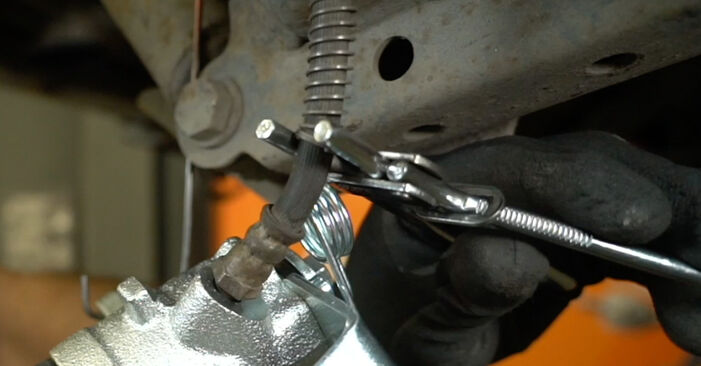

Disconnect the handbrake cable from the parking brake lever on the caliper. Use adjustable pliers. Use a mounting lever.
Step 9

Clean the fastener that connects the brake hose to the brake caliper. Use a wire brush. Use WD-40 spray.
Step 10

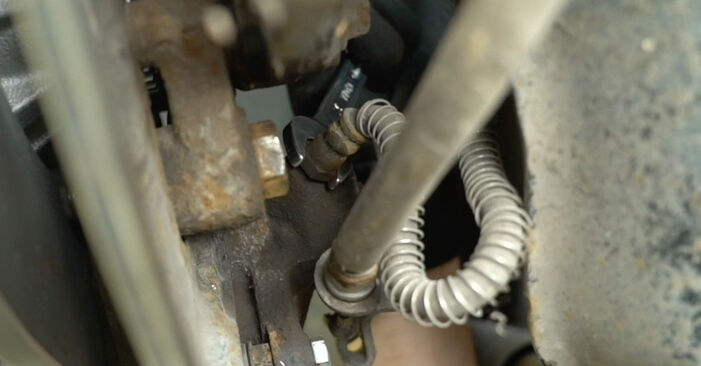

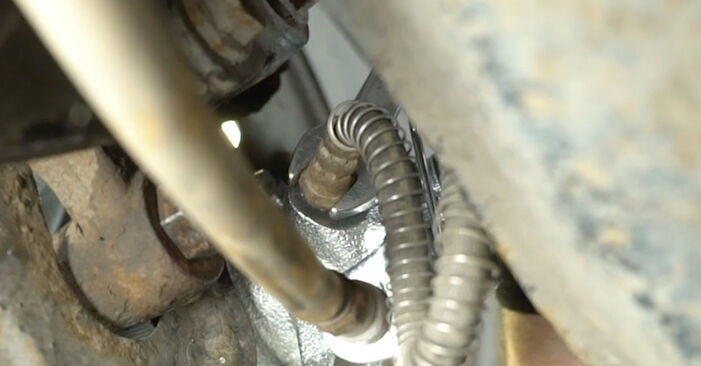

Loosen the fastener that connects the brake hose to the brake caliper. Use a 14 mm combination spanner.
Step 11

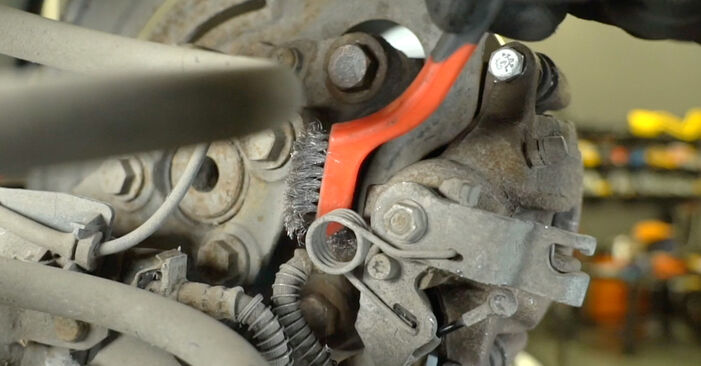

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 12

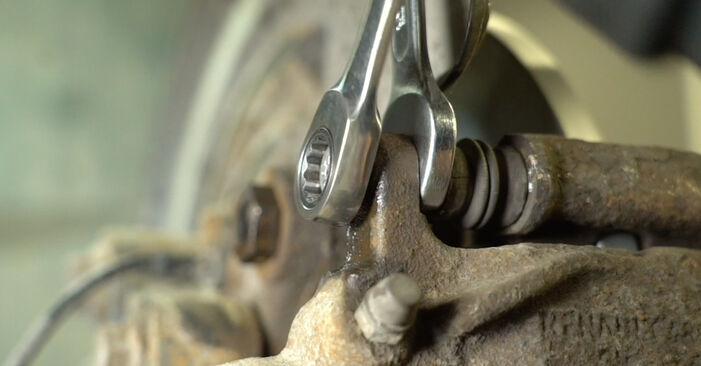

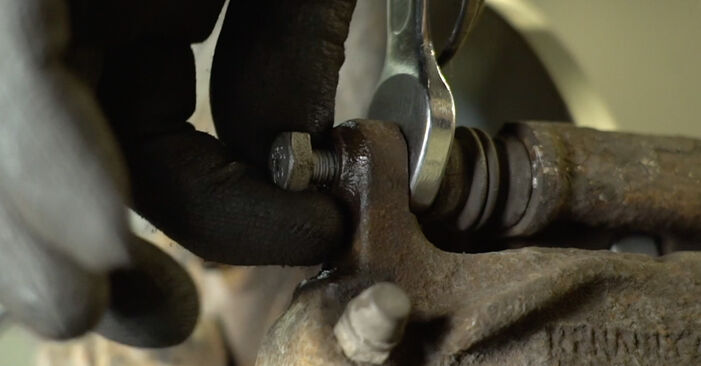

Unscrew the brake caliper fasteners. Use a 15 mm combination spanner. Use a 13 mm combination spanner.
Step 13

Remove the fastening bolts.
Step 14

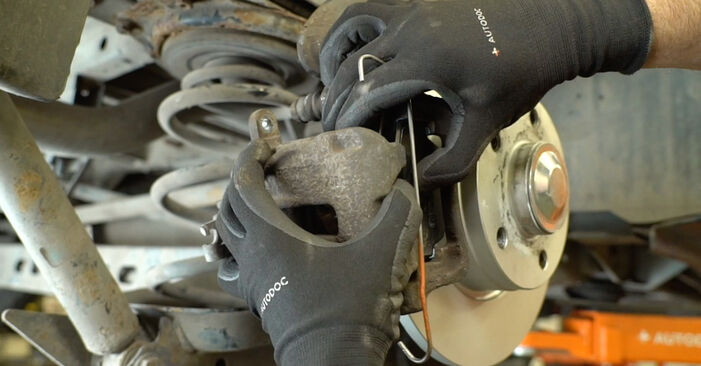

Remove the brake caliper.
Step 15

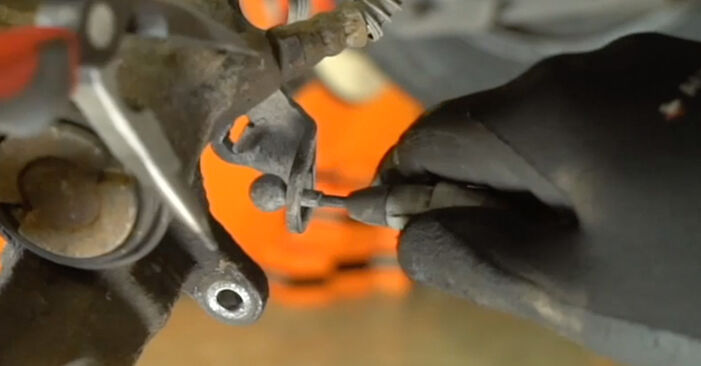

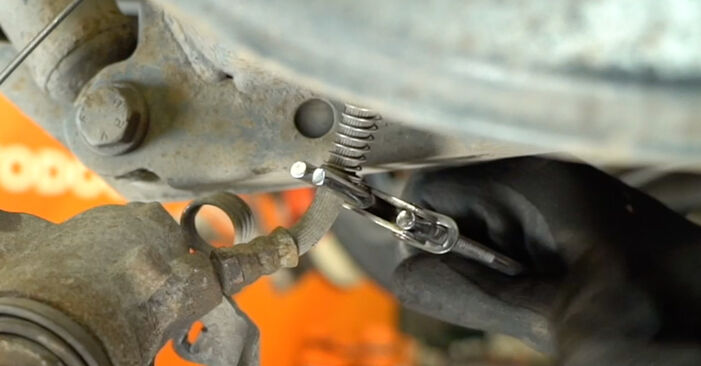

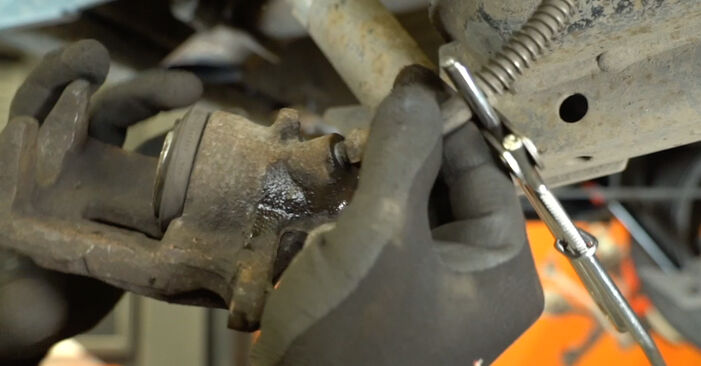

Disconnect the handbrake cable from the bracket on the caliper. Use long nose pliers.
Step 16

Prepare a fluid drain pan. Attach the brake hose clamp to the brake hose.
Step 17

Unscrew the brake hose from the brake caliper.
Step 18

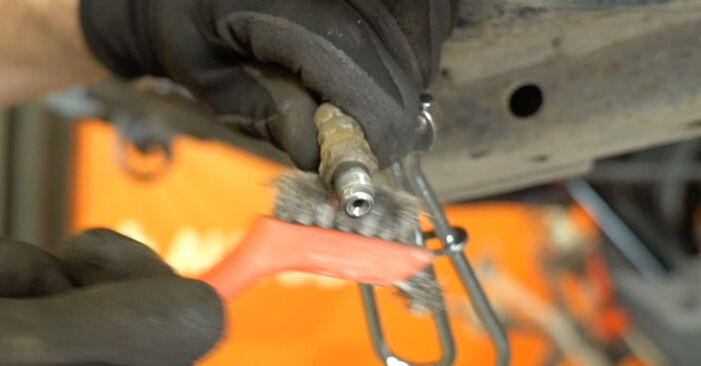

Clean the fitting on the brake hose that connects the hose to the brake caliper. Use a wire brush. Use an all-purpose cleaning spray.
Step 19

Clean the handbrake cable end. Use a wire brush. Use an all-purpose cleaning spray.

Step 20

Screw the brake hose into the new brake caliper. Use a 14 mm combination spanner.

Replacement: brake caliper – VAUXHALL VIVARO Platform/Chassis. AUTODOC experts recommend:

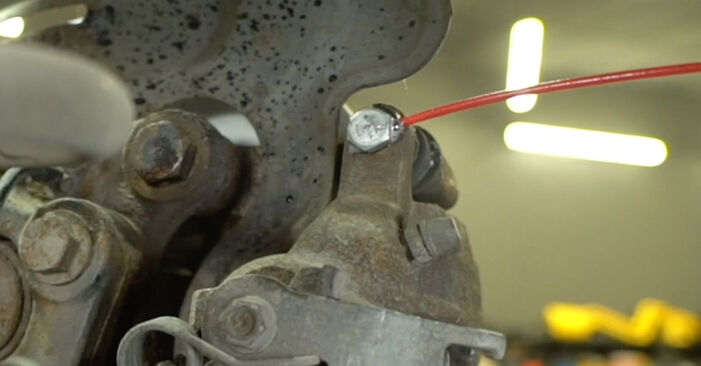

Tie the caliper to the suspension or to the body with a wire.Make sure that the brake caliper is not hanging from the brake hose.Do not press the brake pedal until the brake pads and calipers have been fully assembled. This could cause the piston to fall out of the caliper bore, allowing brake fluid to leak out and air to enter the system.
Step 21

Remove the brake hose clamp from the brake hose.
Step 22

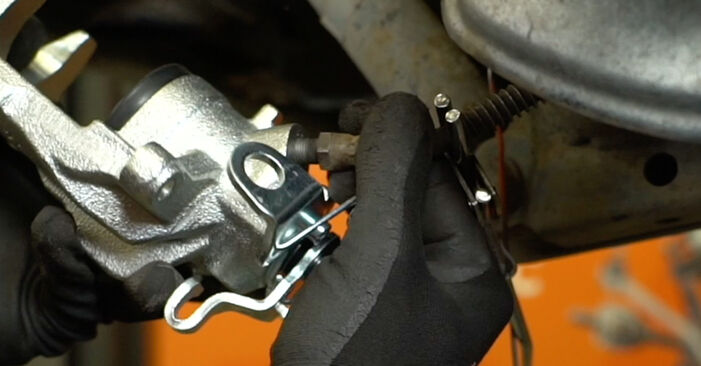

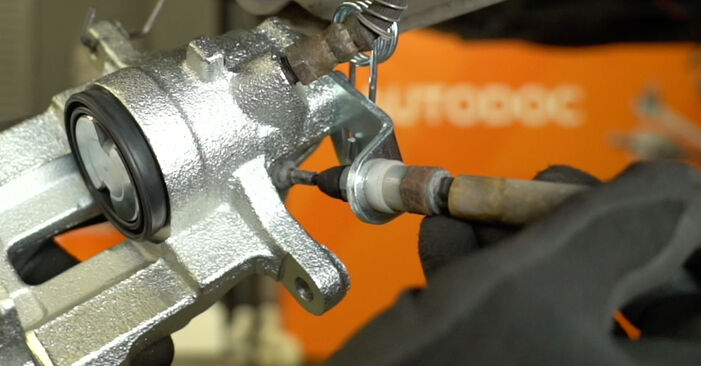

Connect the handbrake cable to the bracket on the brake caliper.
Step 23

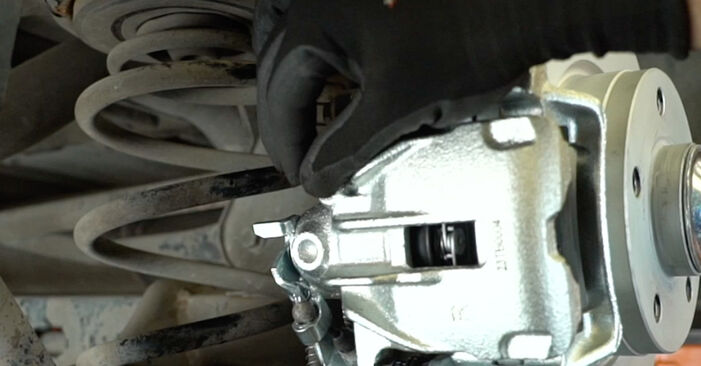

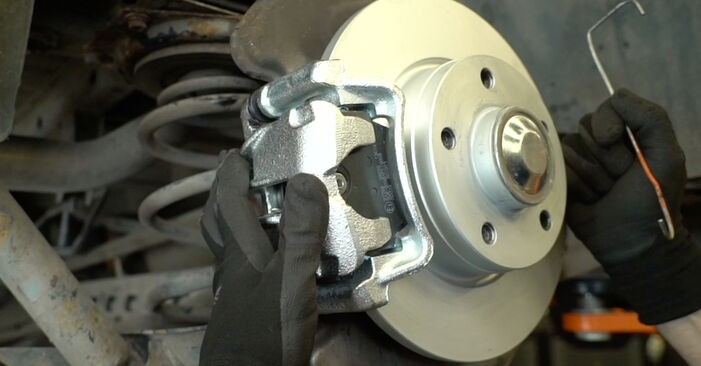

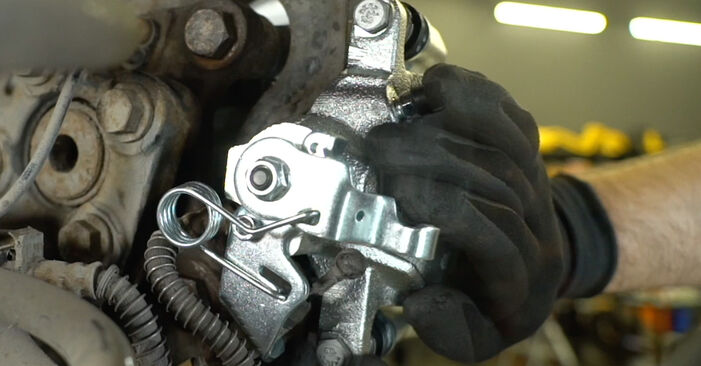

Install the new brake caliper.
Step 24

Install and screw in the fastening bolts.
Step 25

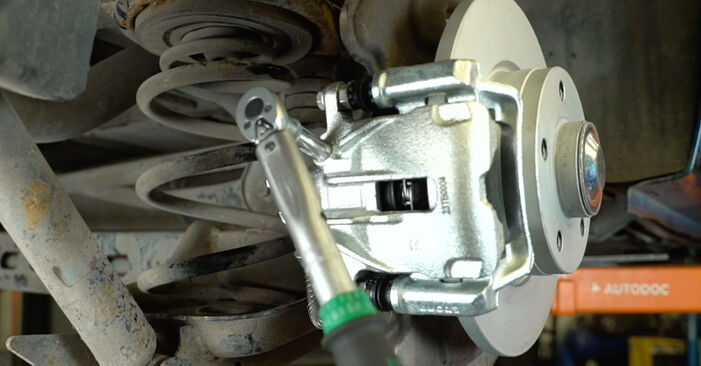

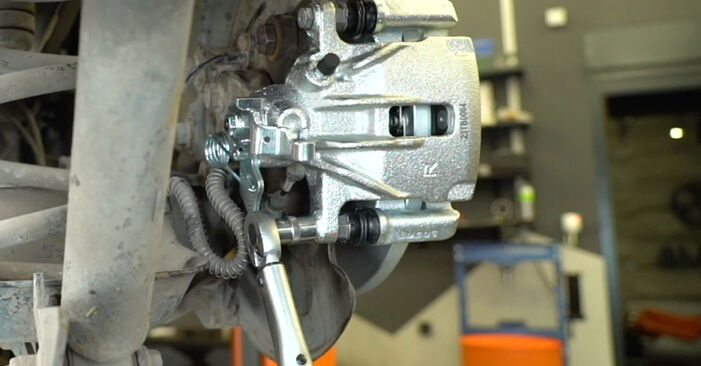

Tighten the brake caliper fasteners. Use a 13 mm socket. Use a 15 mm combination spanner. Use a torque wrench. Tightening torque: 35 N·m.
Step 26

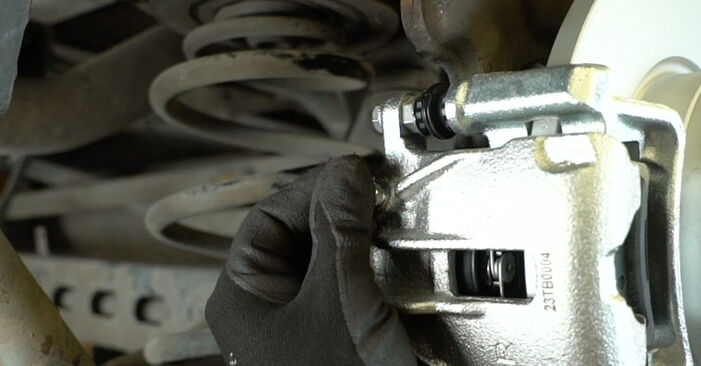

Connect the handbrake cable to the parking brake lever on the caliper. Use adjustable pliers. Use a mounting lever.
Step 27

Securely tighten the brake hose connection to the brake caliper. Use a 14 mm flare nut socket. Use a torque wrench. Tightening torque: 14 N·m.
Step 28

Remove the brake bleeder screw cap.
Step 29

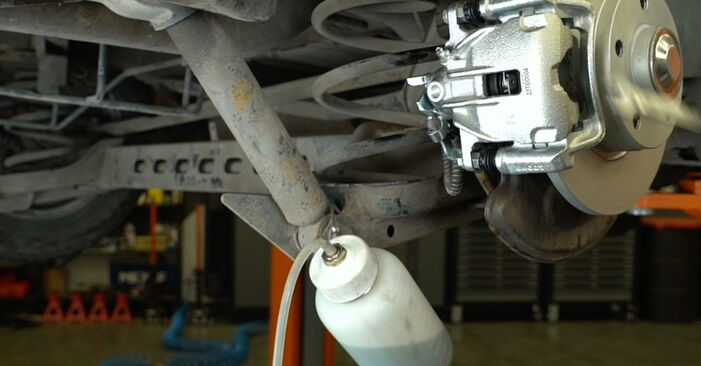

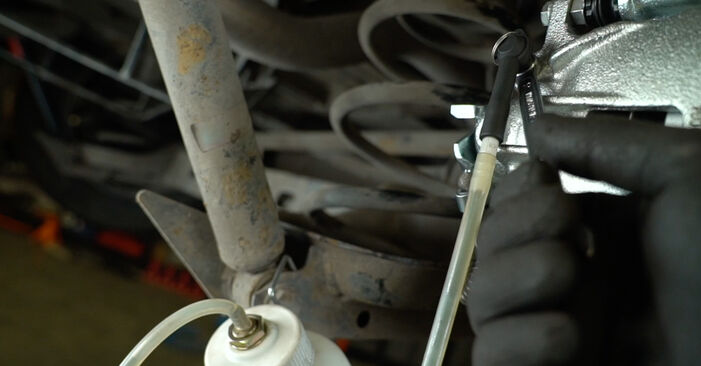

Connect the brake bleeder kit to the brake bleeder screw.

Step 30

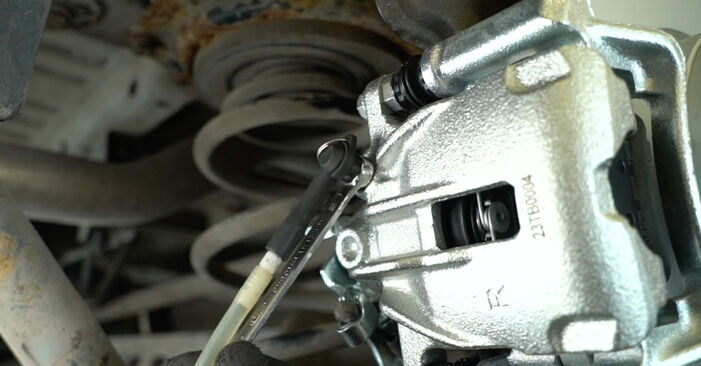

Loosen the brake bleeder screw. Use an 11 mm combination spanner.
Step 31

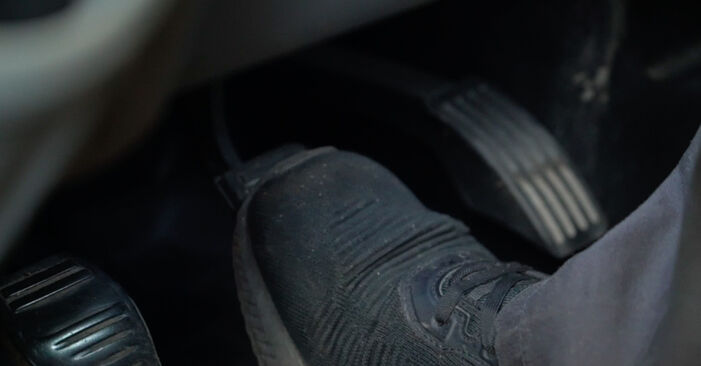

Press the brake pedal several times to remove any air from the system.

AUTODOC recommendation:
Monitor the brake fluid level while bleeding: it should not fall below the Min mark on the brake fluid reservoir. Top up with fresh brake fluid if necessary.You can find detailed instructions on how to bleed the brake system in our other video: https://youtu.be/JTFNlg0uUp0
Step 32

Screw in the brake bleeder screw. Use an 11 mm combination spanner.
Step 33

Disconnect the brake bleeder kit.
Step 34

Clean the brake bleeder screw area. Use a brake cleaner.

Step 35

Tighten the brake bleeder screw. Use an 11 mm socket. Use a torque wrench. Tightening torque: 9 N·m.
Step 36

Reattach the brake bleeder screw cap.
Step 37

Clean the wheel rim mounting seat. Use a wire brush. Use an all-purpose cleaning spray.
Step 38

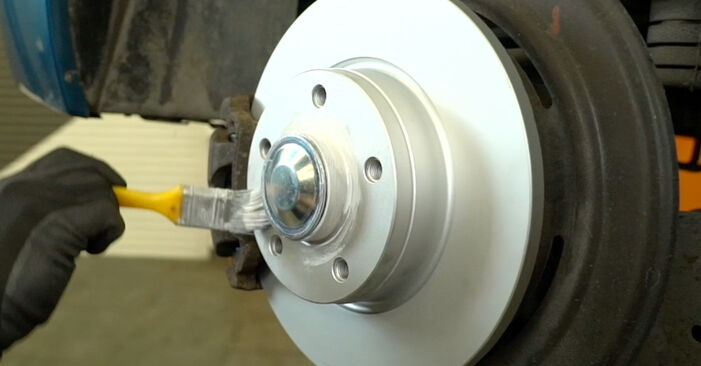

Treat the brake disc surface that contacts the wheel rim. Use ceramic grease.
Step 39

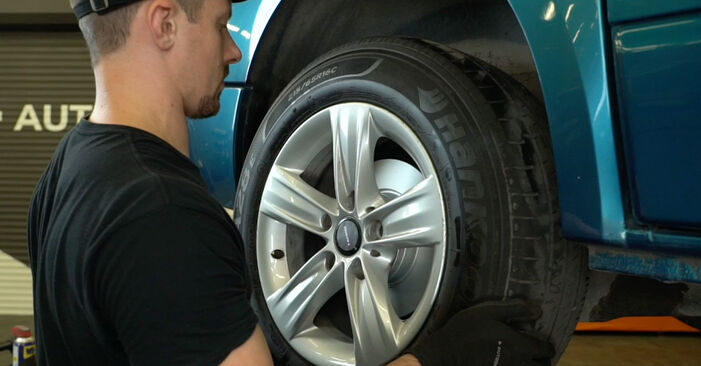

Install the wheel.

Replacement: brake caliper – VAUXHALL VIVARO Platform/Chassis. Professionals recommend:
To avoid injury, hold up the wheel when screwing in the fasteners.
Step 40

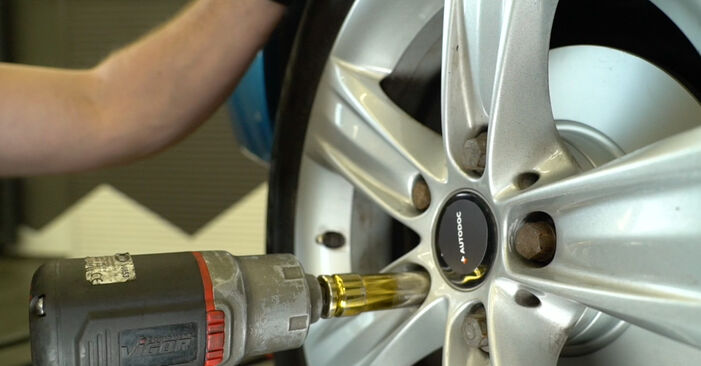

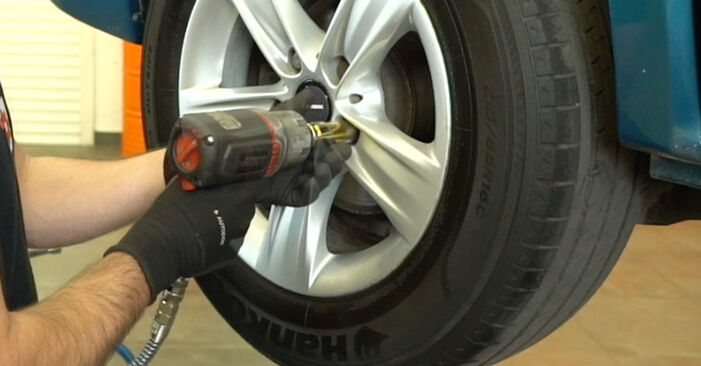

Screw in the wheel fasteners. Use a 19 mm wheel impact socket. Use a ratchet wrench.
Step 41

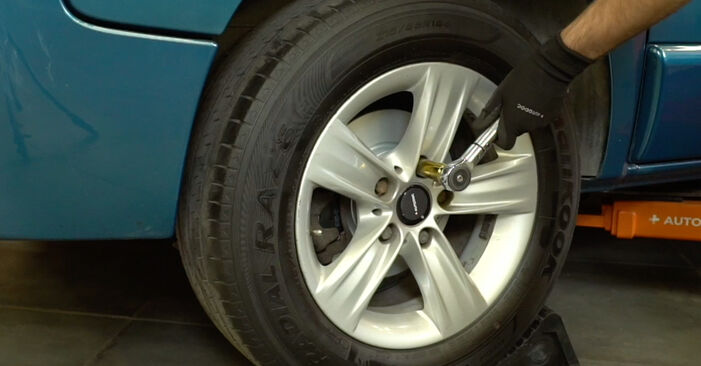

Lower the car and tighten the wheel fasteners in a criss-cross pattern. Use a 19 mm wheel impact socket. Use a torque wrench. Tightening torque: 142 N·m.
Step 42

Remove the jack, jack stands, and wheel chocks.
Step 43

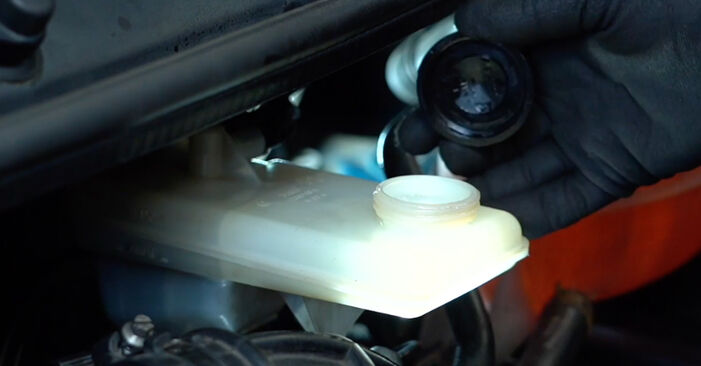

Check the brake fluid level in the reservoir and top up if necessary.
Step 44

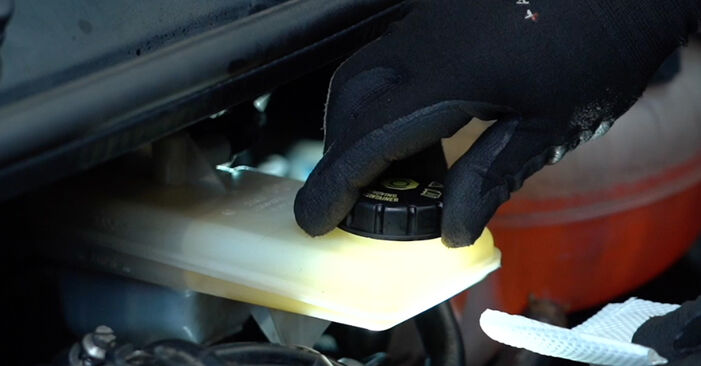

Tighten the brake fluid reservoir cap.

Step 45

Close the bonnet.
