Recommended replacement interval for the part category Brake caliper carrier : 50000 km

Important!

This replacement procedure can be used for:
VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTI, VAUXHALL Vivaro Combi (X82) 1.6 CDTi … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

Alternative products

Brake caliper carrier

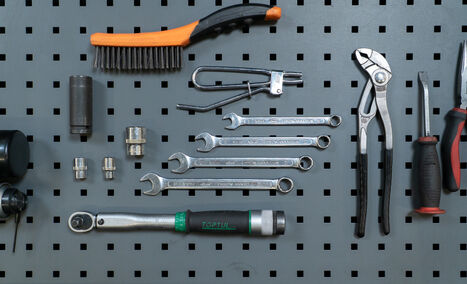

Replacement: brake caliper bracket – VAUXHALL VIVARO Combi. Tools you need:

                      Wire brush

                      WD-40 spray

                      All-purpose cleaning spray

                      Ceramic grease

                      Torque wrench

                      11 mm combination spanner

                      13 mm combination spanner

                      14 mm combination spanner

                      15 mm combination spanner

                      13 mm socket

                      21 mm socket

                      14 mm flare nut socket

                      19 mm wheel impact socket

                      Ratchet wrench or power tool for removal/installation of threaded fasteners

                      Tommy bar

                      Adjustable pliers

                      Mounting lever

                      Long nose pliers

                      Brake hose clamp

                      Brake cleaner

                      Brake bleeder kit

                      Fluid drain pan

                      Car lift or jack with jack stands, and wheel chocks

Buy tools

Replacement: brake caliper bracket – VAUXHALL VIVARO Combi. AUTODOC experts recommend:

The procedure for replacing the right and left brake calipers and brackets on the same axle is identical.
All the work should be carried out with the ignition switched off.

Replacement: brake caliper bracket – VAUXHALL VIVARO Combi. Use the following procedure:

Step 1

Open the bonnet.

Step 2

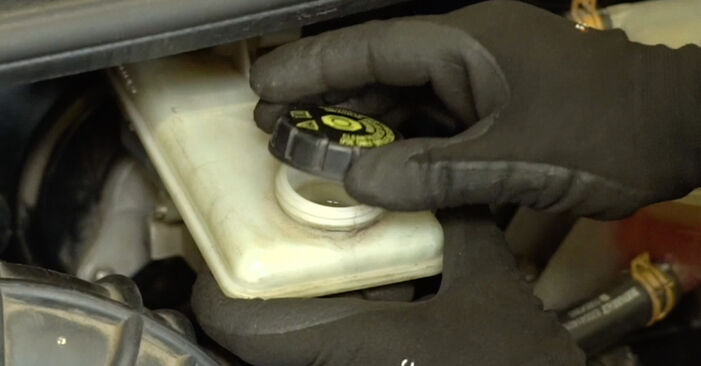

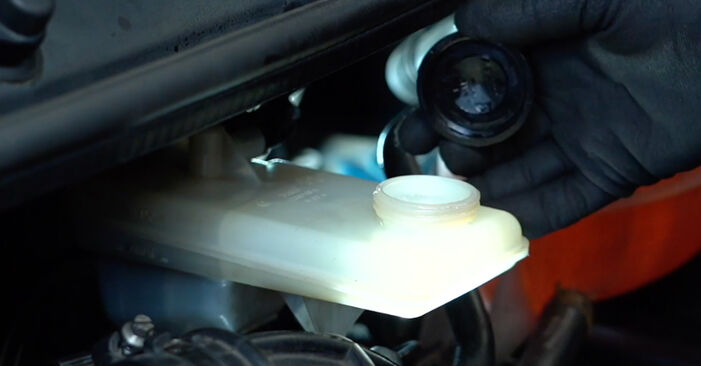

Loosen the brake fluid reservoir cap.
Step 3

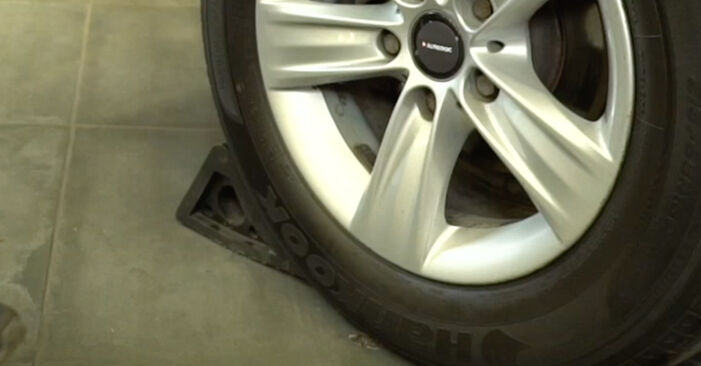

Secure the wheels with chocks.
Step 4

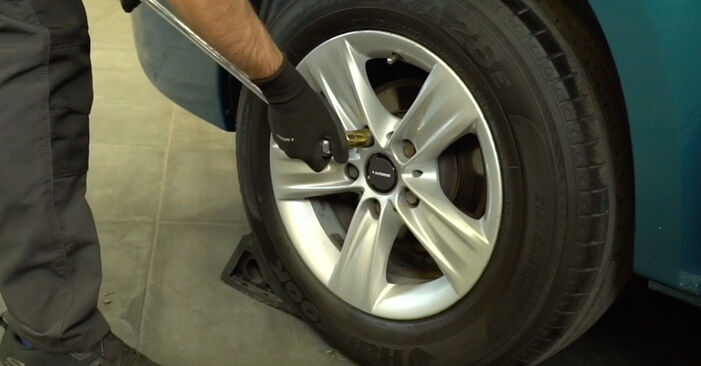

Loosen the wheel fasteners. Use a 19 mm wheel impact socket. Use a tommy bar.
Step 5

Raise the vehicle.

Warning!
If you are using a jack, make sure the car is parked on a hard, flat surface.Make sure to additionally secure the car with jack stands.
Step 6

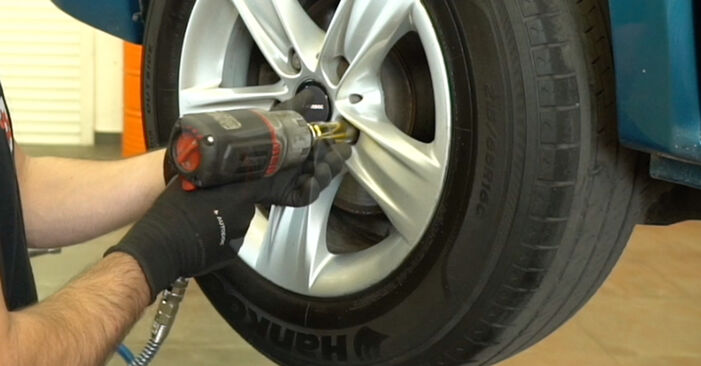

Unscrew the wheel fasteners.

Replacement: brake caliper bracket – VAUXHALL VIVARO Combi. AUTODOC recommends:
To avoid injury, hold up the wheel when unscrewing the fasteners.
Step 7

Remove the wheel.
Step 8

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 9

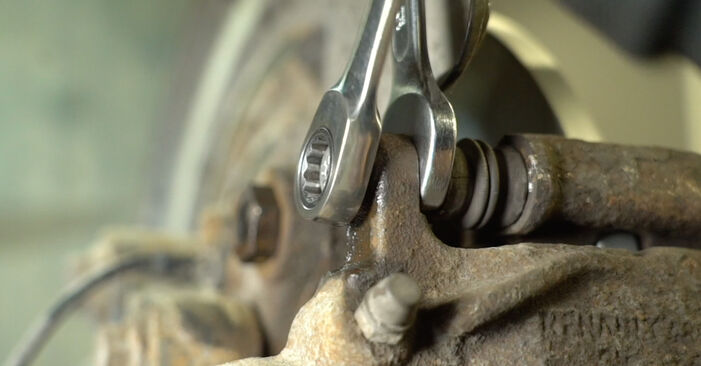

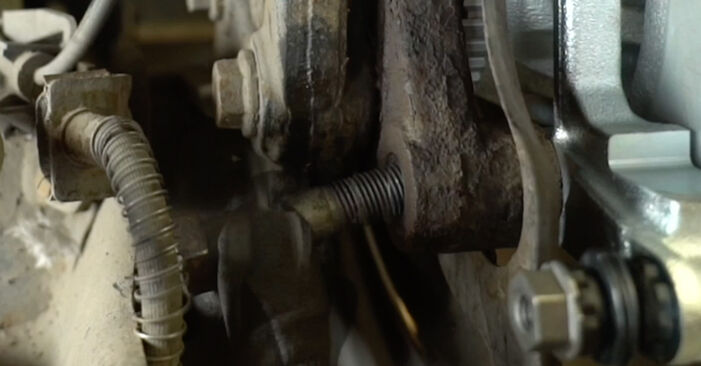

Unscrew the brake caliper fasteners. Use a 15 mm combination spanner. Use a 13 mm combination spanner.
Step 10

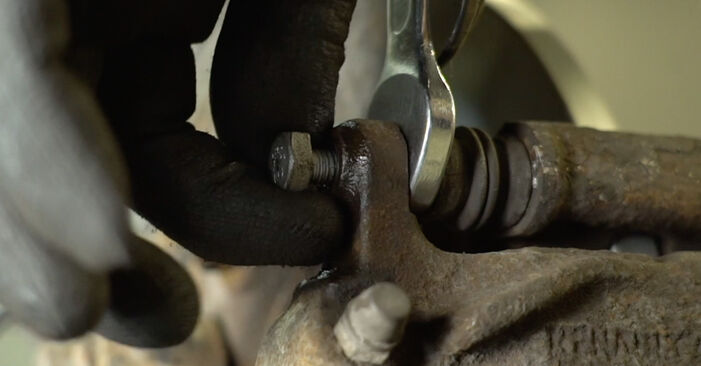

Remove the fastening bolts.
Step 11

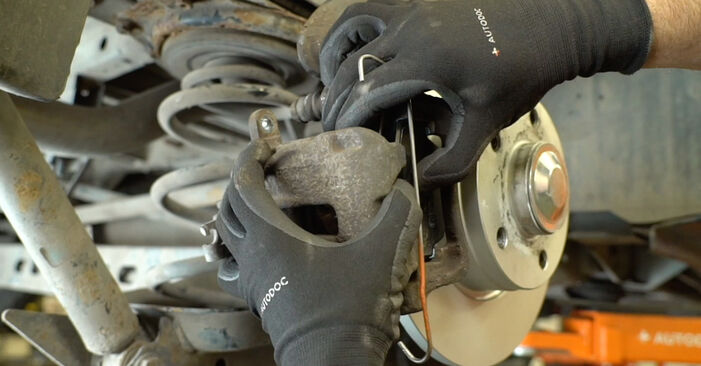

Remove the brake caliper.

Replacement: brake caliper bracket – VAUXHALL VIVARO Combi. Tip from AUTODOC experts:

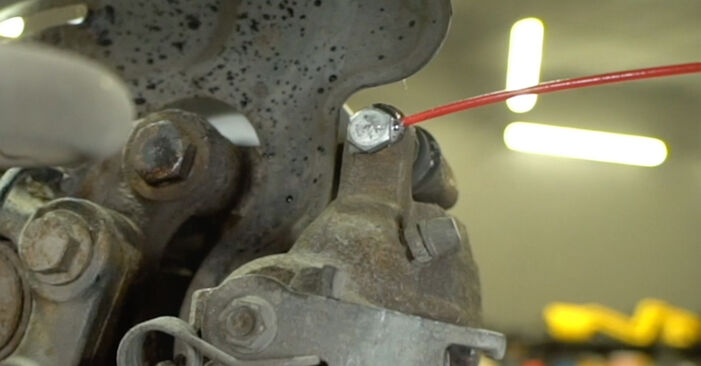

Tie the caliper to the suspension or to the body with a wire without disconnecting it from the brake hose to avoid opening the brake line.Make sure that the brake caliper is not hanging from the brake hose.Do not press the brake pedal after the caliper has been removed. This may cause the piston to fall out of the caliper bore resulting in the brake fluid leakage and air entering the system.
Step 12

Remove the brake pads.
Step 13

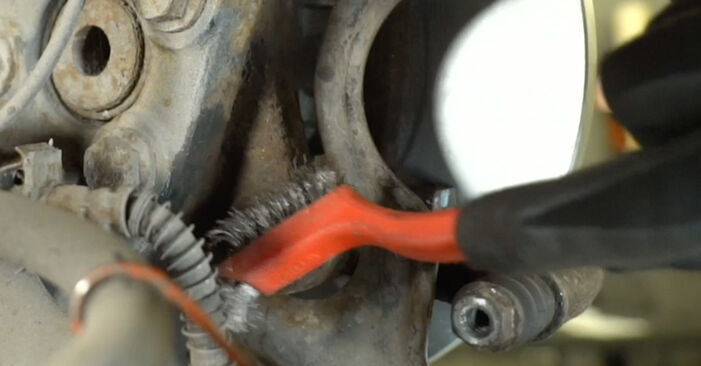

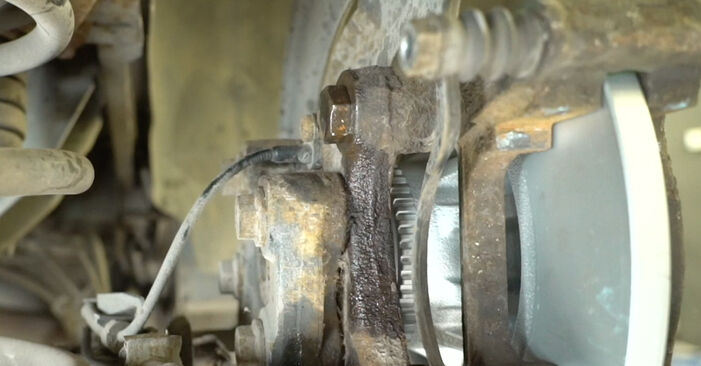

Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
Step 14

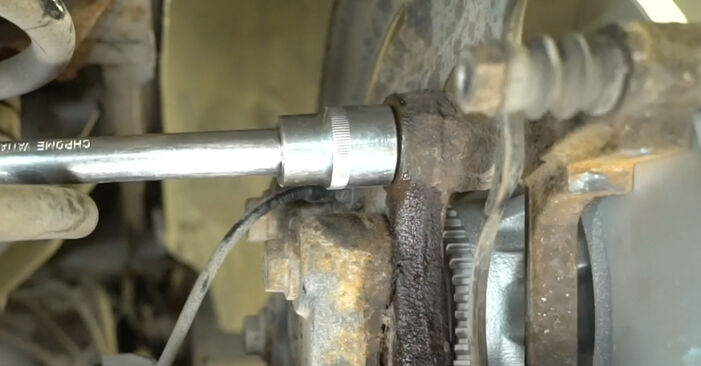

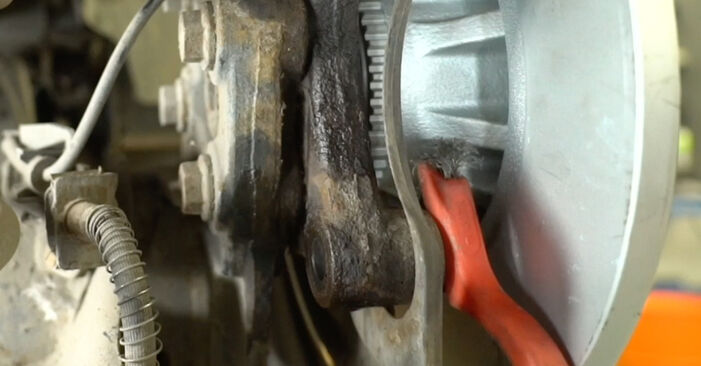

Unscrew the brake caliper bracket fasteners. Use a 21 mm socket. Use a ratchet wrench.
Step 15

Remove the fastening bolts.
Step 16

Remove the brake caliper bracket.

Step 17

Clean the caliper bracket mounting seat. Use a wire brush. Use an all-purpose cleaning spray.
Step 18

Install a new brake caliper bracket.
Step 19

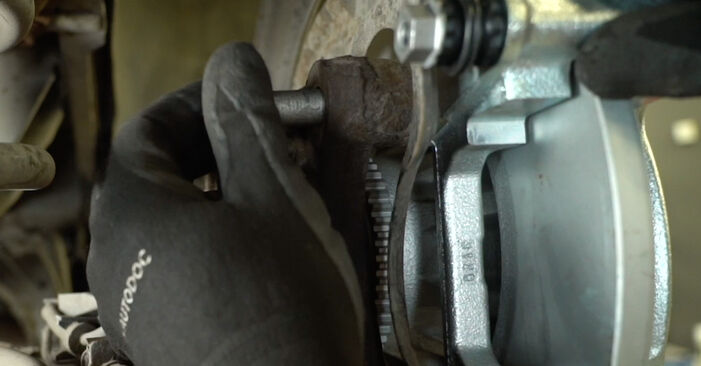

Install and screw in the fastening bolts.
Step 20

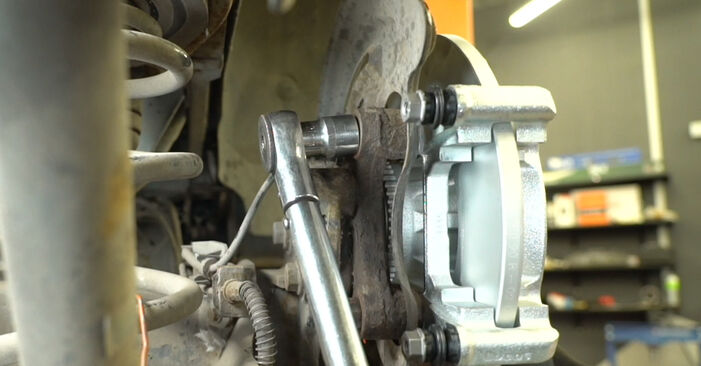

Tighten the fasteners of the brake caliper bracket. Use a 21 mm socket. Use a torque wrench. Tightening torque: 100 N·m.
Step 21

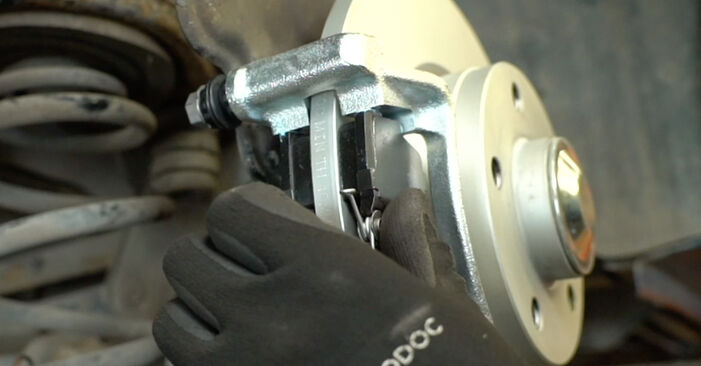

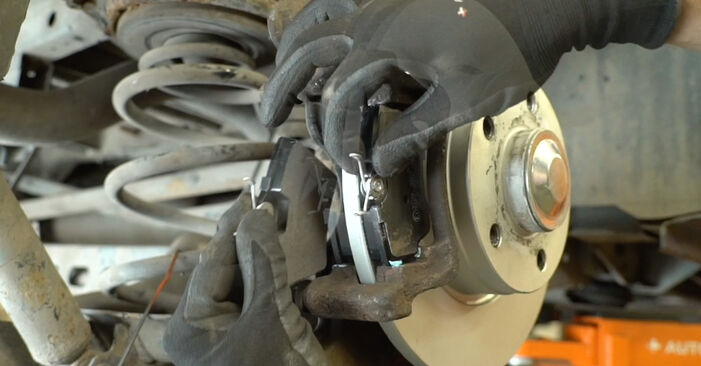

Install the brake pads.
Step 22

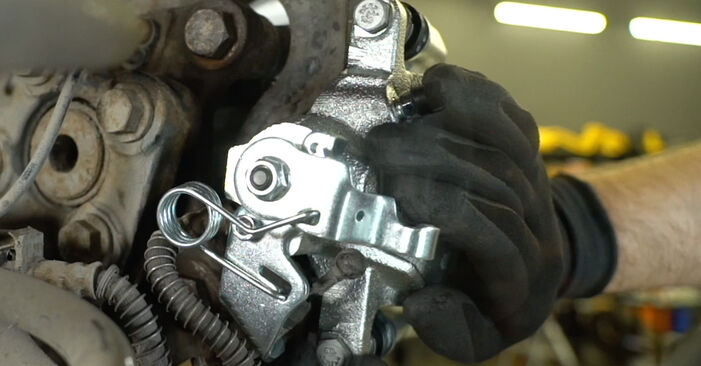

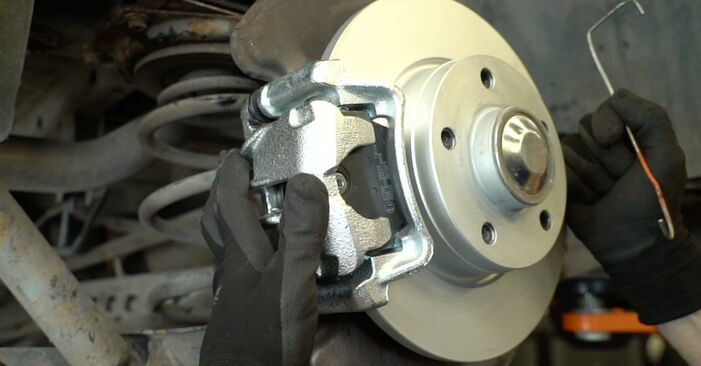

Install the brake caliper.
Step 23

Install and screw in the fastening bolts.
Step 24

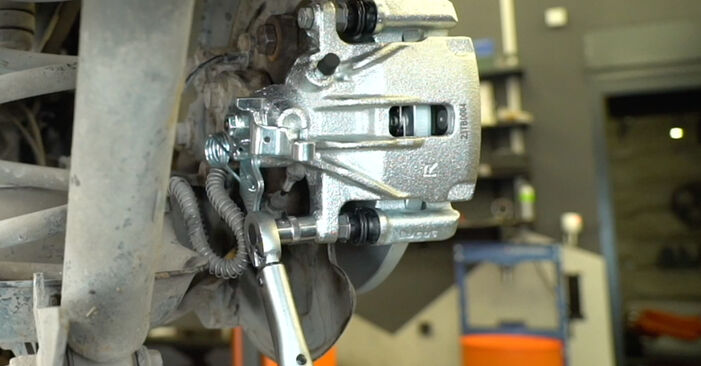

Tighten the brake caliper fasteners. Use a 13 mm socket. Use a 15 mm combination spanner. Use a torque wrench. Tightening torque: 35 N·m.
Step 25

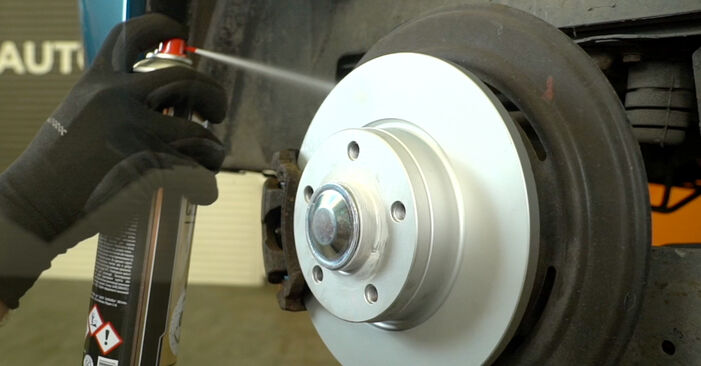

Clean the wheel rim mounting seat. Use a wire brush. Use an all-purpose cleaning spray.
Step 26

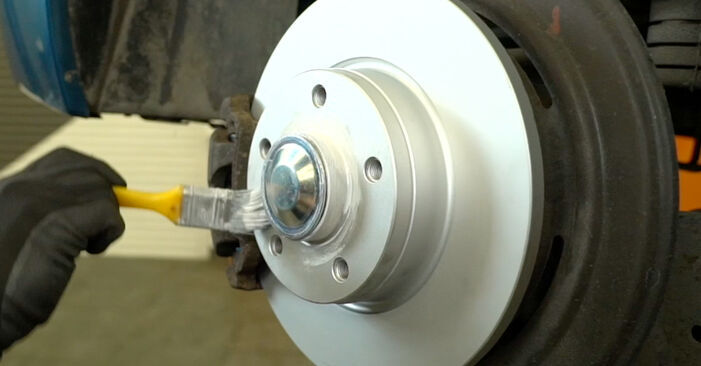

Treat the brake disc surface that contacts the wheel rim. Use ceramic grease.
Step 27

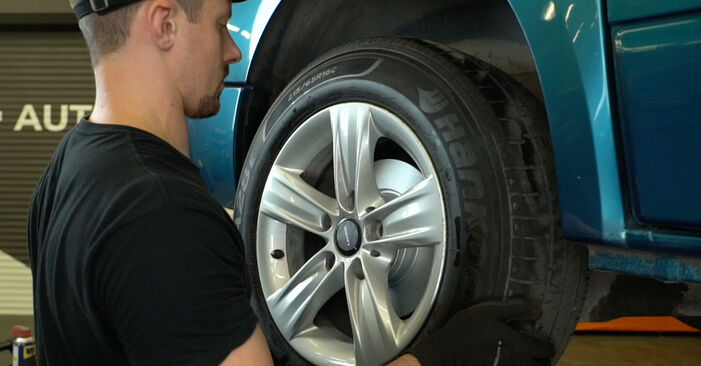

Install the wheel.

Caution!
To avoid injury, hold up the wheel when screwing in the fasteners.
Step 28

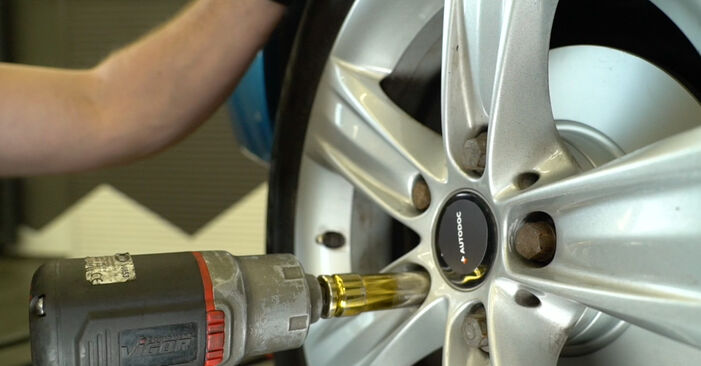

Screw in the wheel fasteners. Use a 19 mm wheel impact socket. Use a ratchet wrench.
Step 29

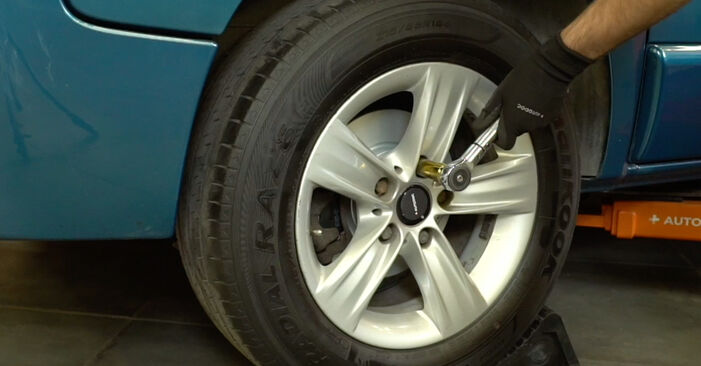

Lower the car and tighten the wheel fasteners in a criss-cross pattern. Use a 19 mm wheel impact socket. Use a torque wrench. Tightening torque: 142 N·m.
Step 30

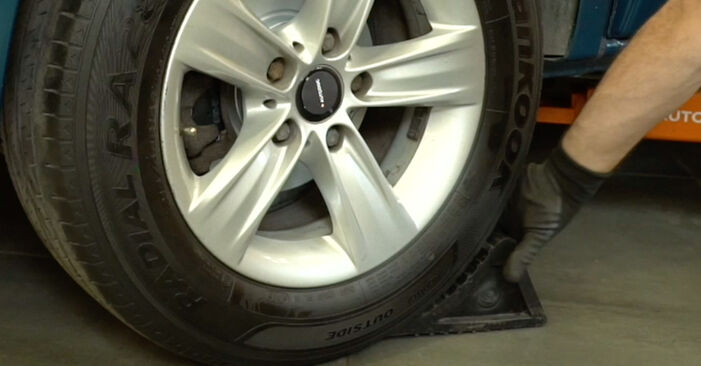

Remove the jack, jack stands, and wheel chocks.
Step 31

Without starting the engine, press the brake pedal several times until you feel significant resistance.
Step 32

Check the brake fluid level in the reservoir and top up if necessary.
Step 33

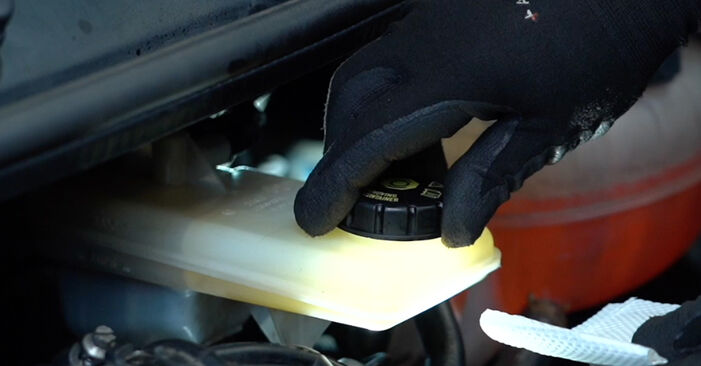

Tighten the brake fluid reservoir cap.

Step 34

Close the bonnet.
