Important!
This replacement procedure can be used for:
VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.4, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.6, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 2.0 SDI, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 2.0 EcoFuel, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.4, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI, VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI 4motion View more

The steps may slightly vary depending on the car design.

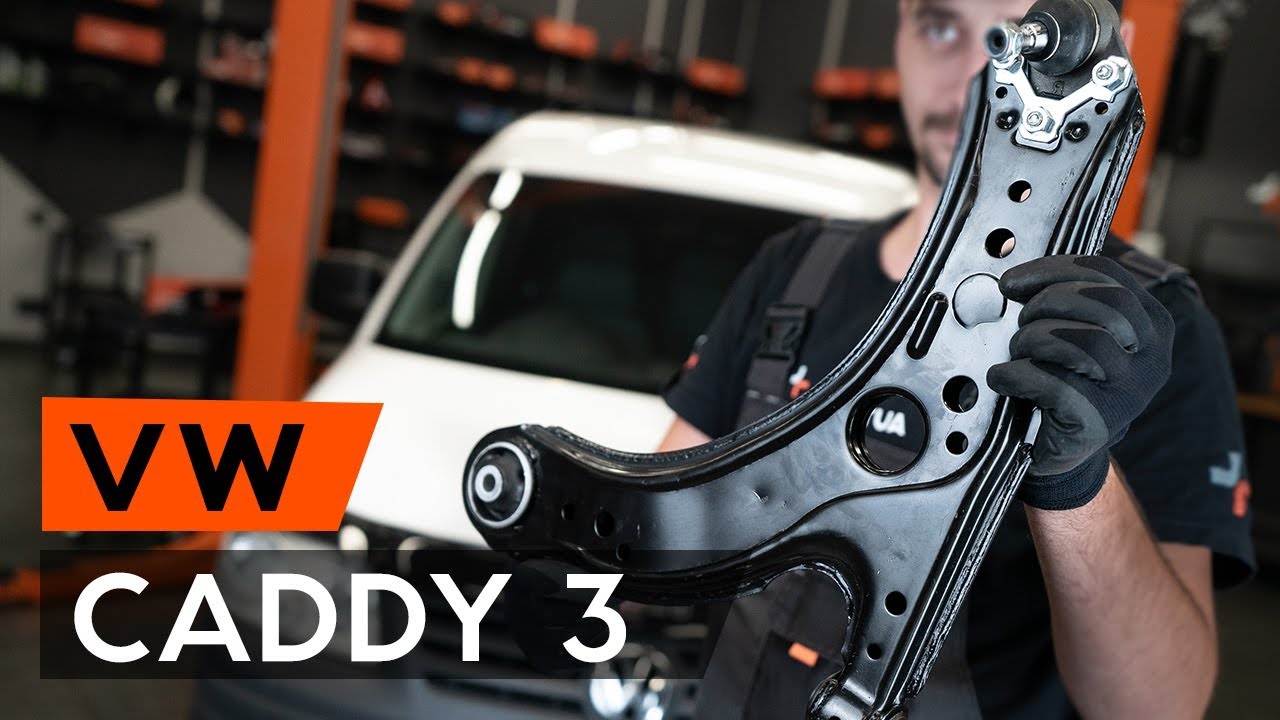

How to change front suspension arm / front control arm on VW CADDY 3 (2KB) [TUTORIAL AUTODOC]

video
Tools
Replacement: front lower arm – VW Caddy 3 Kombi. Tools you'll need:
Wire brush
WD-40 spray
Drive socket # 16
Drive socket # 18
Combination spanner #18
Copper grease
Torque wrench
Wheel impact socket #17
Ball joint puller
Crow bar
Hydraulic transmission jack
Wheel chock
Replacement: front lower arm – VW Caddy 3 Kombi. AUTODOC recommends:
  • The replacement procedure is identical for the left and right lower control arms.
  • Replacement of the independent suspension lower arm in some cars requires a part of the outlet piping of the additional heater to be removed.
  • Please note: all work on the car – VW Caddy 3 Kombi – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Control Arm on VW Caddy 3 2004 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI 2005 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    VW Caddy 3 1.6 TDI 2006 Control Arm replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Control Arm on VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 1.6 2007 by yourself
    Unscrew the wheel bolts.
    Replacement: front lower arm – VW Caddy 3 Kombi. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  5. Step 5
    How to remove VW CADDY 2.0 TDI 16V 2008 Control Arm - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    Remove the lower sound insulation.
    Please note!
    Some cars are not equipped with the lower sound insulation.
    Step 7
    How to replace Control Arm on VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 2009: download PDF manuals and video instructions
    Clean all joints of the arm. Use a wire brush. Treat all joints of the arm. Use WD-40 spray.
    AUTODOC recommends:
    Replacement: front lower arm – VW Caddy 3 Kombi. After applying the spray, wait a few minutes.Wear protective goggles.
  7. Step 8
    How hard is it to do yourself: Control Arm replacement on VW Caddy 3 2.0 SDI 2010 - download illustrated guide
    Unscrew the ball joint fastening nut. Use a combination spanner #18.
  8. Step 9
    Need to know how to renew Control Arm on VW CADDY 2011? This free workshop manual will help you to do it yourself
    Loosen the fastening nut, remove the arm from the steering knuckle using a ball joint puller. If necessary, use a crowbar.
  9. Step 10
    Changing of Control Arm on VW Caddy 3 2012 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the front arm fastener. Use a drive socket No.18 or ring spanner No.18.
  10. Step 11
    VW CADDY 1.9 TDI Control Arm replacement: online guides and video tutorials
    Unscrew the rear arm fastener. Use a drive socket #16, #18.
  11. Step 12
    Replacing Control Arm on VW Caddy 3 2014 1.9 TDI by yourself
    Remove the arm. Use a crowbar.
  12. Step 13
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
    Step 14
    Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 2.0 TDI 16V 2015 Control Arm DIY replacement workshop manual
    Install a new arm. Insert the ball joint into the steering knuckle and fix it with a new nut.
    AUTODOC recommends:
    Do not damage the ball joint cover.
  13. Step 15
    How to change Control Arm on VW Caddy III Estate (2KB, 2KJ, 2CB, 2CJ) 2004 - tips and tricks
    Install the front fastener of the arm. Do not tighten it.
  14. Step 16
    Step-by-step recommendations for DIY replacement VW Caddy 3 2005 2.0 TDI 16V Control Arm
    Install the rear fastener of the arm.
Comments – 1
  • G. I.
    23.05.2023 09:23
    Member
    The tutorial does not cover the same type of suspension arm that the guy is holding up, that is the type I have and there doesn't seem to be a tutorial for that type of arm.
