How to change front anti roll bar links on VAUXHALL Vivaro Combi (X82) – replacement guide
downloads:
1
Views:
7
Important!
This replacement procedure can be used for:
VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTI, VAUXHALL Vivaro Combi (X82) 1.6 CDTi … View more
The steps may slightly vary depending on the car design.
VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTi, VAUXHALL Vivaro Combi (X82) 1.6 CDTI, VAUXHALL Vivaro Combi (X82) 1.6 CDTi … View more
The steps may slightly vary depending on the car design.
This video shows the replacement procedure of a similar car part on another vehicle

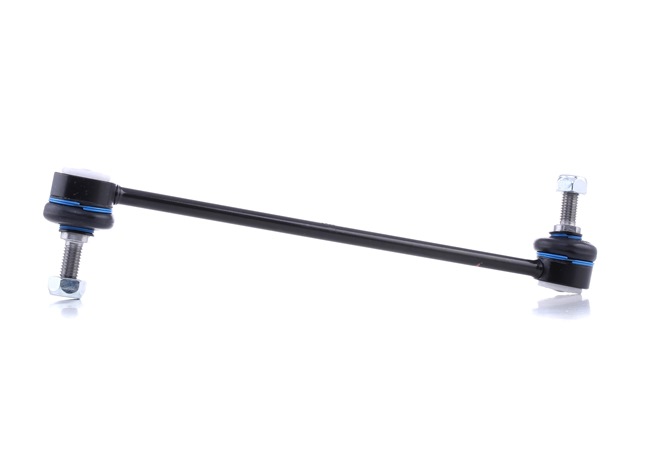

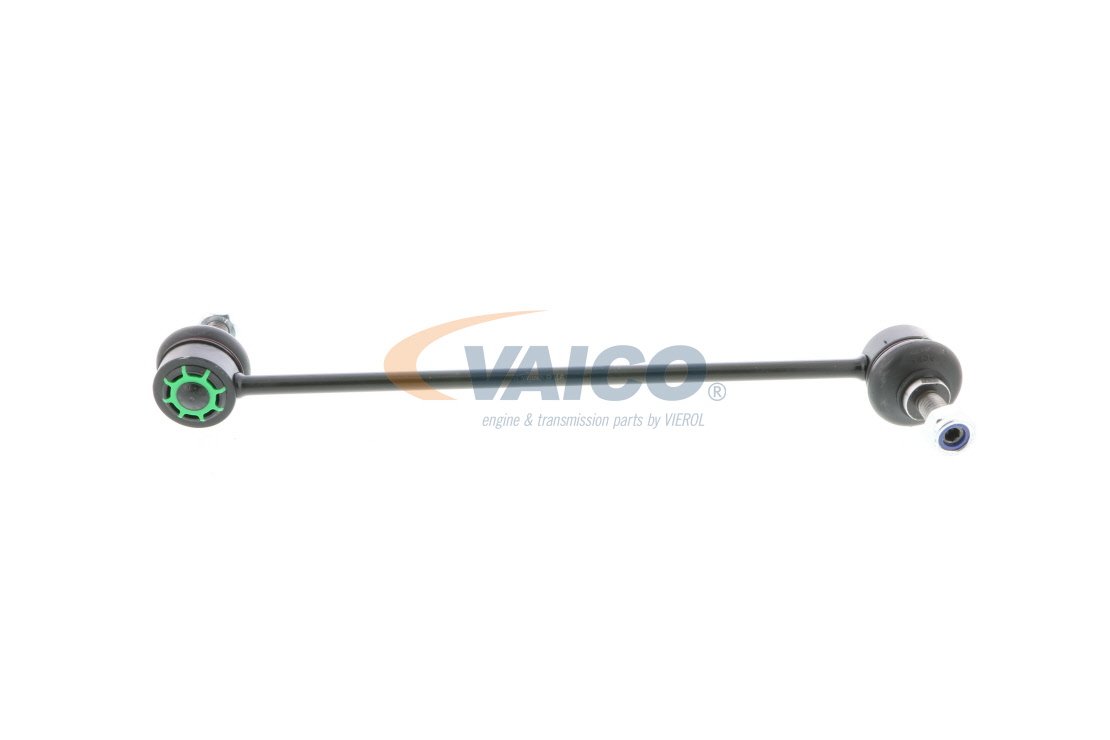

All the parts you need to replace – Anti Roll Bar Links for Vivaro Combi (X82) and other VAUXHALL models
Alternative products
Anti-roll bar link
Wire brush
WD-40 spray
All-purpose cleaning spray
Ceramic grease
Torque wrench
16 mm combination spanner
13 mm socket
H5 Allen key
19 mm wheel impact socket
Ratchet wrench or power tool for removal/installation of threaded fasteners
Tommy bar
Car lift or jack with jack stands, and wheel chocks
Replacement: anti roll bar links – VAUXHALL VIVARO Combi. AUTODOC experts recommend:
- Replace the anti-roll bar links and bushes in pairs.
- The replacement procedure is identical for the anti-roll bar links and bushes on both sides of the same axle.
- All the work should be carried out with the ignition switched off.
Replacement: anti roll bar links – VAUXHALL VIVARO Combi. Take the following steps:
- Step 1
Secure the wheels with chocks. - Step 2
Loosen the fasteners of the front wheels. Use a 19 mm wheel impact socket. Use a tommy bar. - Step 3Raise the vehicle.Replacement: anti roll bar links – VAUXHALL VIVARO Combi. Tip:If you are using a jack, make sure the car is parked on a hard, flat surface.Make sure to additionally secure the car with jack stands.Step 4
Unscrew the wheel fasteners.Caution!To avoid injury, hold up the wheel when unscrewing the fasteners. - Step 5
Remove the wheel. - Step 6
Clean the fasteners of the anti-roll bar link. Use a wire brush. Use WD-40 spray. - Step 7
Unscrew the fastener connecting the anti-roll bar link to the suspension strut. Use a 16 mm combination spanner. Use an H5 Allen key to secure the ball stud. Use a ratchet wrench. - Step 8
Unscrew the fastener connecting the anti-roll bar link to the anti-roll bar. Use a 16 mm combination spanner. Use an H5 Allen key to secure the ball stud. Use a ratchet wrench. - Step 9
Remove the anti-roll bar link. - Step 10
Clean the mounting seats of the anti-roll bar link. Use a wire brush. Use an all-purpose cleaning spray. - Step 11Remove the other wheel.Step 12
Follow the same steps to remove the other anti-roll bar link. - Step 13
Install a new anti-roll bar link and its fasteners. Use a 16 mm combination spanner. Use an H5 Allen key to secure the ball stud. Use a ratchet wrench.
