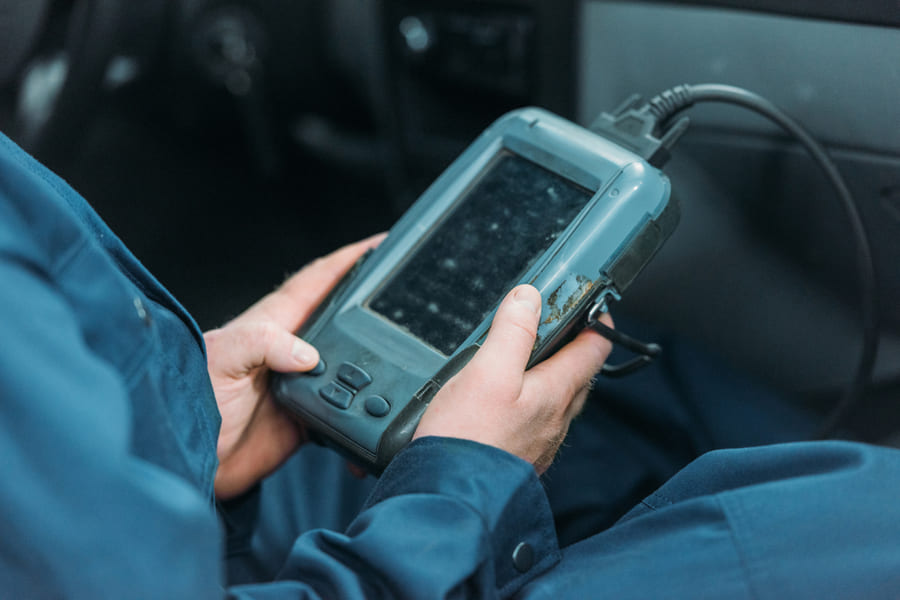

An On-Board Diagnostics (OBD) reader is a handheld or wireless device that acts as a gateway to your vehicle’s internal computer system. By plugging into a standardised 16-pin port usually located under the dashboard, the reader communicates with the vehicle’s network of Electronic Control Units (ECUs) to monitor performance, diagnose faults, and provide real-time data for maintenance and emissions testing.
For British motorists, an OBD reader is an essential tool for identifying why an Engine Management Light (EML) or other dashboard warning has appeared. When the vehicle’s sensors detect a value outside the normal range, the ECU stores a Diagnostic Trouble Code (DTC). The reader extracts these codes, allowing the user to pinpoint specific issues—such as a faulty oxygen sensor or an engine misfire—before they escalate into expensive repairs.
Beyond simple fault finding, these devices can also clear temporary fault codes to reset dashboard lights after a successful repair, which can be useful before an MOT if the engine management light had been triggered by a resolved fault. More advanced scanners provide live data streams, showing real-time metrics like engine RPM, coolant temperature, and fuel trim, which are invaluable for both DIY enthusiasts and professional technicians.
| Function | Description | Typical Use Case |
|---|---|---|
| Read & Clear DTCs | Retrieves and deletes stored fault codes | Resetting the Engine Management Light (EML) after a repair |
| Live Data Streaming | Displays real-time sensor readings | Monitoring fuel efficiency or engine temperatures |
| Freeze Frame Data | Captures sensor values at the exact moment a fault occurred | Analysing the conditions that triggered a fault code |
| I/M Readiness | Checks if emission systems are functioning correctly | Checking for unresolved faults before an MOT, where an active EML is a failure point |
Technical Specifications and Requirements
Modern vehicles in the UK typically use the OBD-II standard, which has been mandatory for petrol cars since 2001 and diesel cars since 2004. These systems primarily communicate via the Controller Area Network (CAN bus) protocol, specifically ISO 15765-4, which standardises how diagnostic requests and responses are formatted across different manufacturers. The physical connection is made via a 16-pin SAE J1962 connector, usually situated within reach of the driver’s seat. While basic code readers can access “generic” codes related to emissions and the powertrain, professional-grade tools may be required to access manufacturer-specific modules like ABS, SRS (airbags), or electronic handbrakes. For basic code reading, users should ensure the ignition is in the “On” position (engine off) to allow the scanner to establish a stable handshake with the ECU. However, live data streaming and certain readiness monitor tests require the engine to be running.
- Standardised Protocol: Most UK vehicles use 11-bit or 29-bit CAN IDs for diagnostic communication.
- Diagnostic Services: Mode 01 provides live data, while Mode 03 retrieves confirmed fault codes.
- DTC Structure: Codes start with a letter (P for Powertrain, B for Body, C for Chassis, U for Network) followed by four digits.
- Safety Advice: Never clear codes to hide serious mechanical issues. Doing so removes the warning indicators for unresolved faults, which — if left unaddressed — can result in serious mechanical damage or an MOT failure.
Conclusion
An OBD reader is a vital diagnostic link that transforms a vehicle’s complex electronic signals into actionable information. By providing direct access to the vehicle’s error logs and real-time sensor data, it helps drivers understand a vehicle’s fault status, provides a useful extra check when assessing a used car, and helps ensure their car meets strict British environmental standards. To get the most out of your diagnostic sessions, choosing reliable hardware is paramount. AUTODOC offers an extensive range of specialised automotive electrical tools, from basic code readers to advanced bi-directional scanners, ensuring you have the right equipment for any task. Their technical advisors provide expert guidance on parts compatibility, helping you transition from diagnosis to repair with confidence and precision.
